Geekom Air 12 Mini PC 12th Gen Intel Twin Lake N150



Specifications
Operating System Windows 11 Professional
Form Factor 117 × 112 × 34.2 mm
CPU Intel Twin Lake N150 (4 Cores, 4 Threads, 6MB Cache, up to 3.6 GHz)
TDP 6 W
Video Engine Processor Intel UHD Graphics
Memory DDR5 SODIMM, 4800 MT/s, 16 GB
Audio HDA CODEC
support two DMICS array (optional)
Storage 1 × SSD (2280 M.2 SATA and PCIE Gen 3 ×4), 512 GB

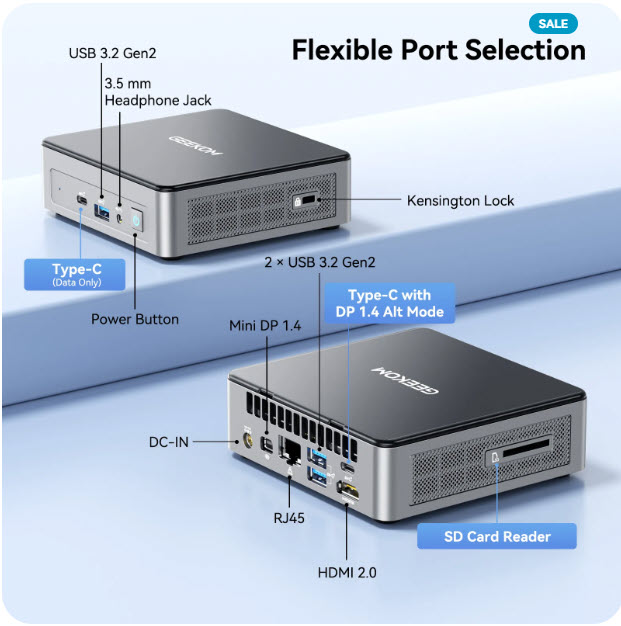

I/O Port 1 × USB 3.2 Gen 2 ×1 port (front panel)
2 × USB 3.2 Gen 2 port (back panel)
1 × TYPE-C with DP 1.4 Alt Mode (back panel)
1 × TYPE-C Data Only (front panel)
1 × SD card reader
1 × 3.5 mm headphone jack (front panel, supports Apple HeadPhone)
1 × RJ45 (back panel)
1 × HDMI 2.0 (back panel)
1 × Mini DP 1.4 (back panel)
1 × DC in (back panel)
1 × Power button
1 × Kensington Lock
Internal Connector 1 × M.2 key-M slot (PCIe/SATA)
1 × Fan
1 × RTC
1 × USB 2.0
LED 1 × Power LED (Power On: Blue, S3: Flashing Orange)
1 × SATA SSD: Red, PCIE SSD: Green
Ethernet Intel® 10/100/1000 Mbps Ethernet
Wireless LAN onboard Wi-Fi 6
Bluetooth 5.2
Kensington Lock Yes
